Operating Voltage
2.7~5.5V
Operating Current
97μA（External clock input）
Clock Frequency
3.6864MHz
Compatible
AD5700
Package
QFN24

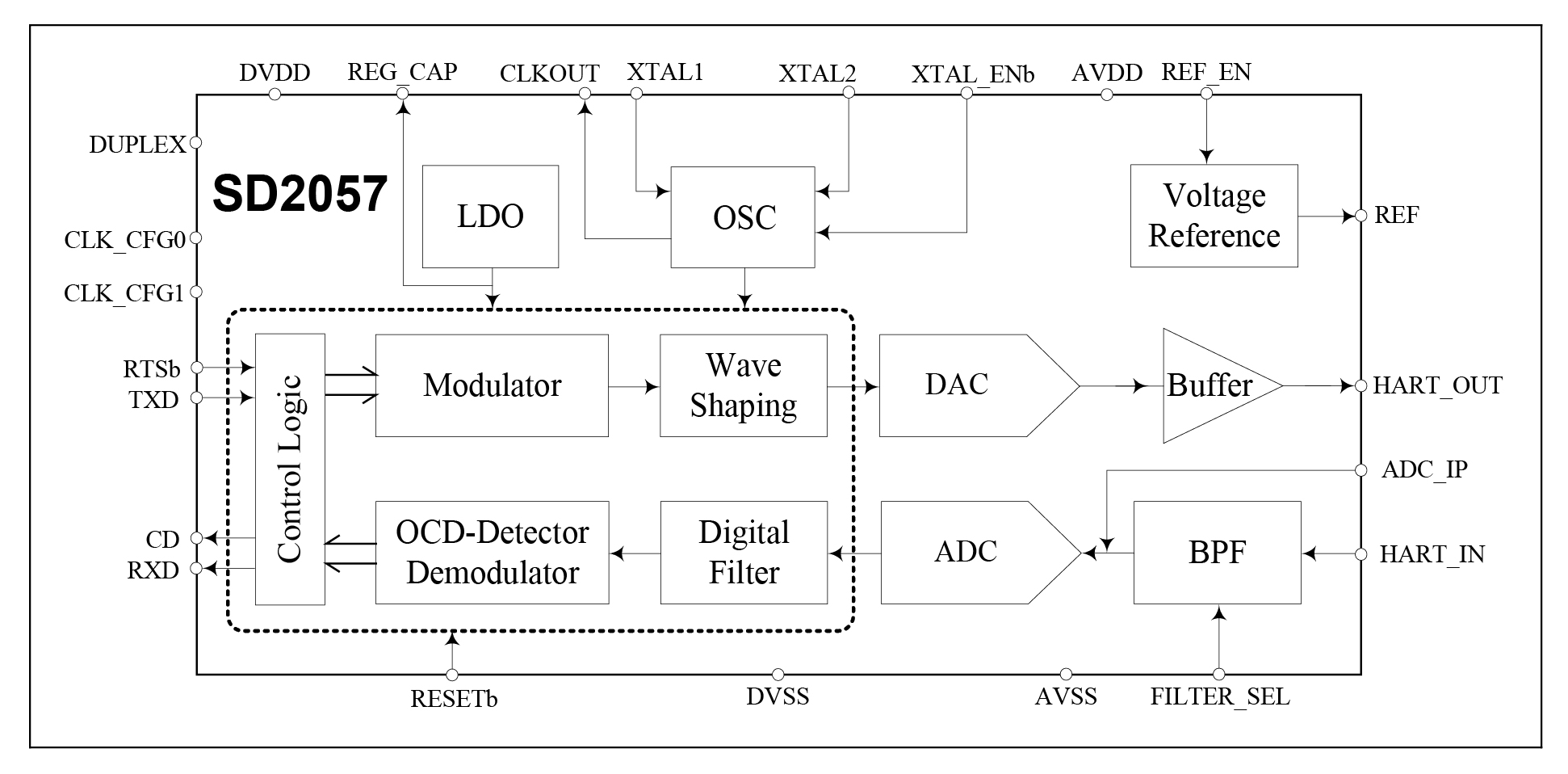

The SD2057 is a CMOS single chip modem IC used in Highway Addressable Remote Transducer (HART) field instruments and masters. This IC integrates all necessary filtering, signal detection, modulating, demodulating, and HART signal wave shaping functions. Thus it requires few external passive components to satisfy the HART physical layer requirements.
The SD2057 uses phase continuous Frequency Shift Keying (FSK) at 1200 bps, and operates in half duplex mode per HART protocol. The maximum supply current consumption in transmit mode is 112μA while using 3.6864MHz external Clock source input and 5.5V power supply.
Required board space is very small because of the 4mm x 4mm QFN package and very few external components needed, making it ideal for line-powered applications in both master and slave configurations.
Meets HART physical layer requirements
Bell 202 shift frequencies of 1200Hz and 2200Hz
Integrated receive filter, minimal external components required
Buffered HART output for drive capability
UART interface
2.7V to 5.5V power supply
112μA maximum supply current in transmit mode
-55°C to +125°C operation range
24pins 4mm х 4mm QFN package
RoHS compliant
